Automotive Smoke Machine, Leak Detector Car, Motorcycle. Autool SDT203

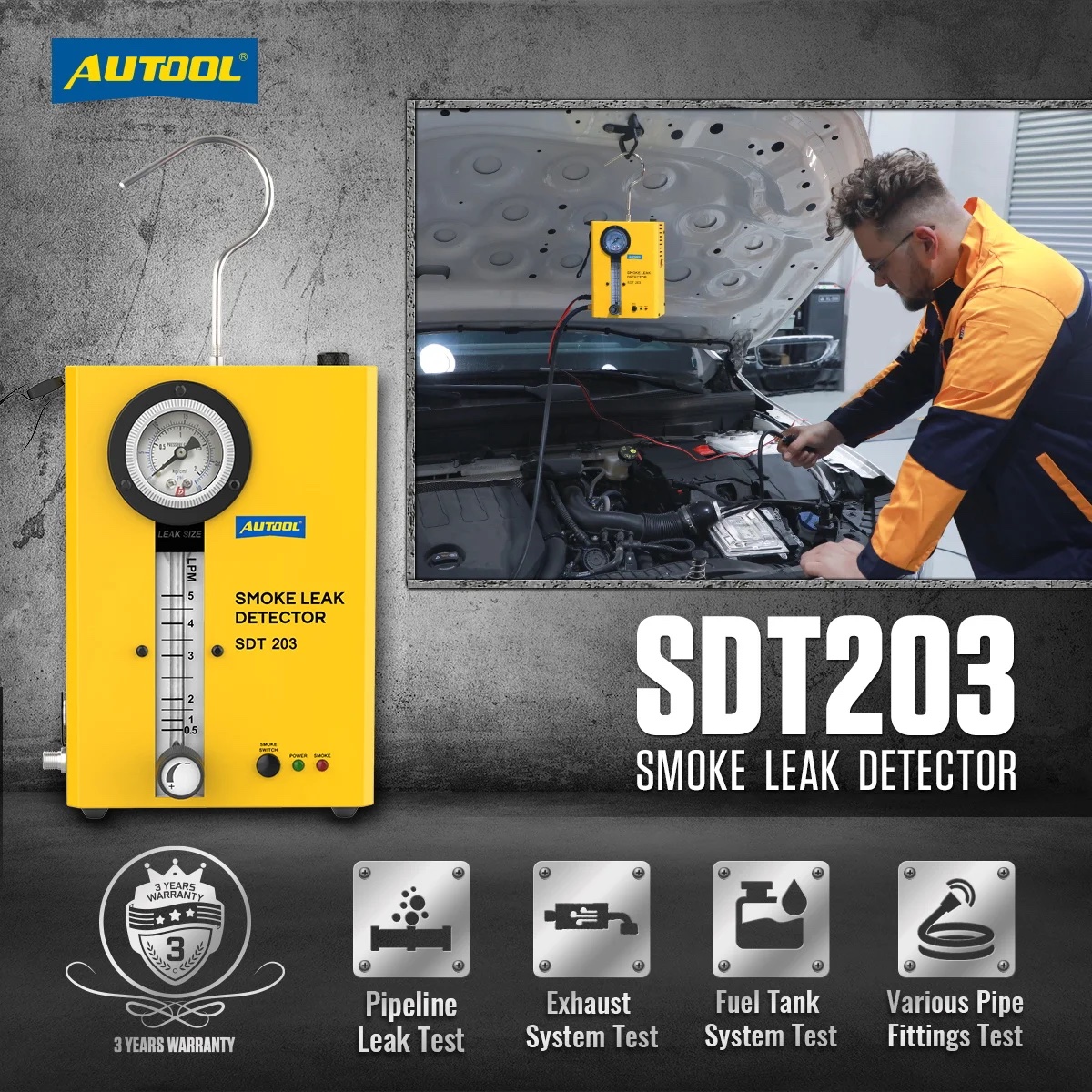

Autool SDT 203 Automotive Smoke Leak Detector.

  • Suitable for Cars, Bikes, Light Trucks, Boat engines etc. Requires 12 Volt supply.
  • Built in Air pump.
  • Works with either Paraffin or Baby Oil.
  • Includes Various Fittings, Pipe ends etc.
  • Ships from the UK.

AUTOOL Original SDT203 Automotive Smoke Leak Detector. EVAP Vacuum Leakage Diagnostic Tool, Pipe Leakage Analyzer for 12Volt Cars, Bikes, Trucks etc

AUTOOL SDT203 Car Smoke Leak Detector is a professional automotive leak detect tool. It will help determine car and motorcycle leaks in sealed systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Cooling System Test, Crankcase system test, Car Sealing Test, Fuel Tank System Test, Turbo System Test, and other Various Pipe Fittings Test.

What can be tested with AUTOOL SDT203 auto evap smoke leak diagnosis machine?
Over 80% of all standard OBD II trouble codes that can be generated are pressure-related, either air or oil line pressure. The majority of pressure problems are caused by a leak somewhere. By checking the sealing of the vehicle's pipework joints and gaskets, leaks can be more accurately identified.
Using SDT203 evap smoke machine leak tester, you can check Car Sealing, Throttle Shafts, Engine Block, Turbo Test System, Crankcase System, Intake System, Exhaust System, Fuel Tank System, EVAP System, EGR System, Cooling System, Various Pipe Fittings Leakage Problems.
Full system diagnostics, don't miss any leaks.
1. Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.
2. Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which could cause the engine light to illuminate and result in reduced engine power .
3. Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.
4. Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.
5. Turbo Test: The leakage of coolant would cause the engine to report high water temperature.Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.
6. EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.
7. Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere and the possibility of entering the cabin or increased noise is the main disadvantage when leaks happen in the exhaust
1.When you use this AUTOOL SDT 203 Car Smoke Leak Detector for the first time, fill with 10ml oil . Please be careful NOT to beyond this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector tank & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The working parts of this machine will be hot, please be careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
How to do leak test?
1. Fill 10ml baby oil to the detector for the first time. Open the bonnet, and hang the detector from the bonnet .
2. Disconnect the pipe that needs to be connected with detector.
3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.
4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
Packing List:
1pc* AUTOOL SDT 203 Car Smoke Leak Detector main unit
1pc* Power Cord Clamp
1pc*Smoke Hose
1pc* Standard Cone Adapter
1pc* Universal Airbag
1pc* Hard Rubber Hose Plug
1pc* Hook
1pc* funnel
1pc* User Manual
