Ditex PDS500X Pressure Transducer Kit for finding serious engine mechanical defects.
This Advanced Pressure Diagnostic kit allows you to monitor the engine’s dynamic pressure and vacuum and thus access its performance.
It’s designed for all auto repair shops and diagnostic specialists who would like to observe the engine absolute pressure diagram in real-time.
You will be able to find serious mechanical defects in the tested cylinder or the whole engine, find whether an extra air is entering the cylinder, detect clogging of the exhaust ports, reduced exhaust valve lift, or restricted exhaust.
This Advanced Pressure Diagnostic kit allows you to monitor the engine’s dynamic pressure and vacuum and thus access its performance.
It’s designed for all auto repair shops and diagnostic specialists who would like to observe the engine absolute pressure diagram in real-time.
You will be able to find serious mechanical defects in the tested cylinder or the whole engine, find whether an extra air is entering the cylinder, detect clogging of the exhaust ports, reduced exhaust valve lift, or restricted exhaust.
Introduction Video of the Advanced In-Cylinder Pressure Transducer Kit PDS500x
100 µS ultra-fast, auto zeroing, affordable automotive pressure transducer
When price, performance, and accuracy matter, there is nothing that compares to the Ditex PDS500G Automotive Pressure Transducer - an extremely powerful high-resolution tool offering accurate, stable, and reproducible results.
In-cylinder pressure testing for finding serious engine mechanical defects
This Advanced Pressure Diagnostic kit gives you the opportunity to monitor the engine’s dynamic pressure and vacuum and thus access its performance.
It’s designed for all auto repair shops and diagnostic specialists who would like to observe the engine absolute pressure diagram in real-time.
You will be able to find serious mechanical defects in the tested cylinder or in the whole engine, find whether an extra air is entering the cylinder, detect clogging of the exhaust ports, reduced exhaust valve lift, or restricted exhaust.

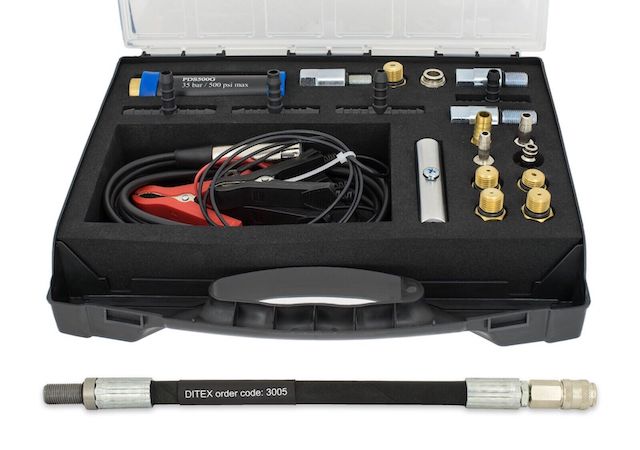

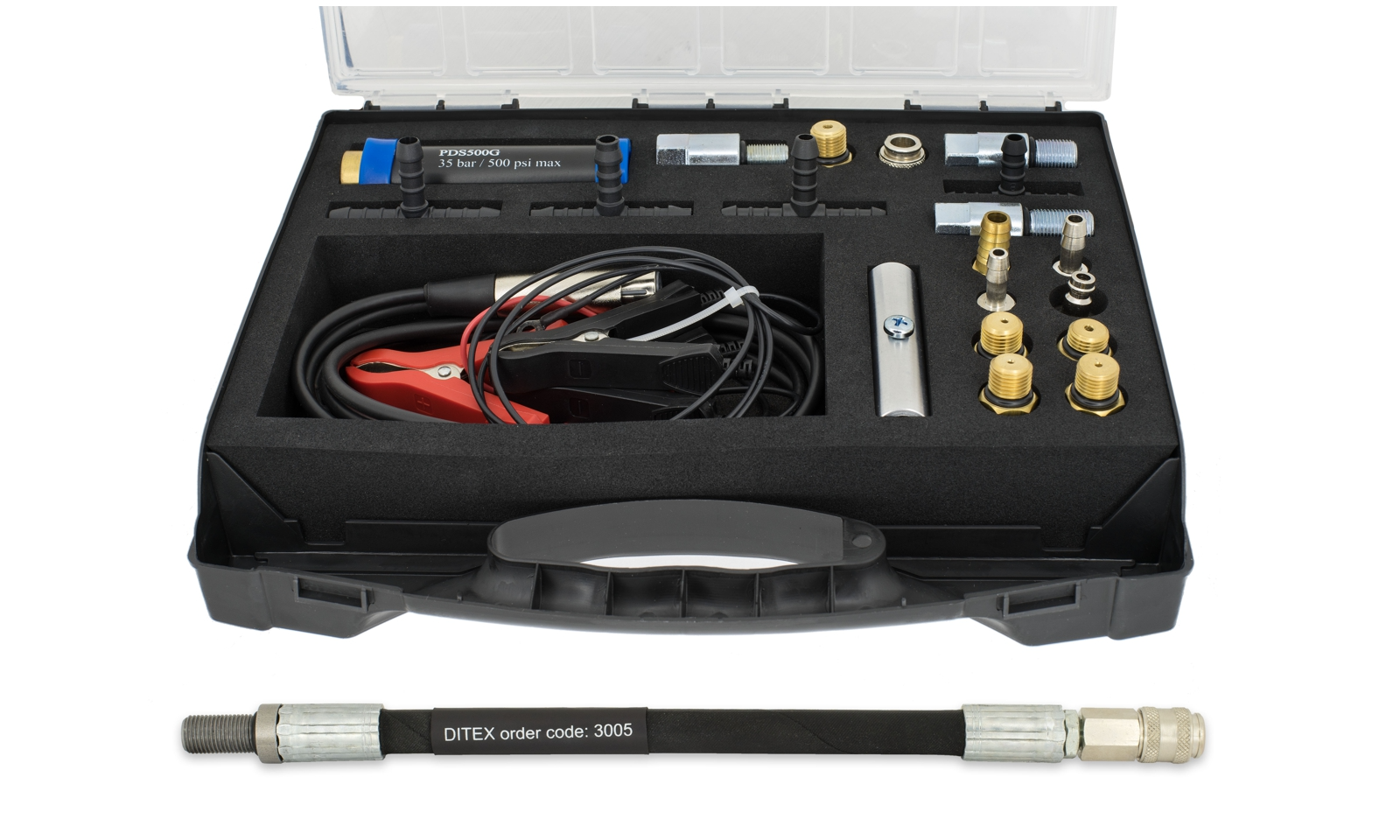

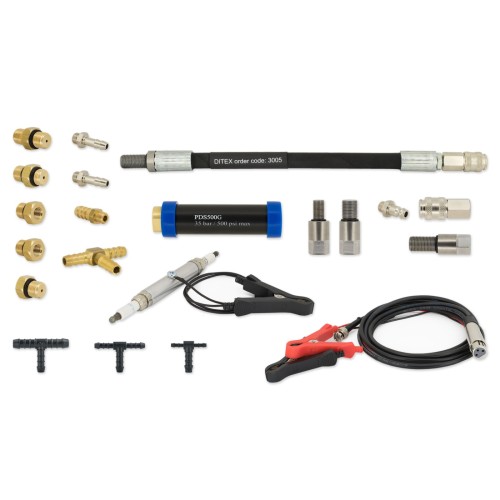

Included in the set :
-

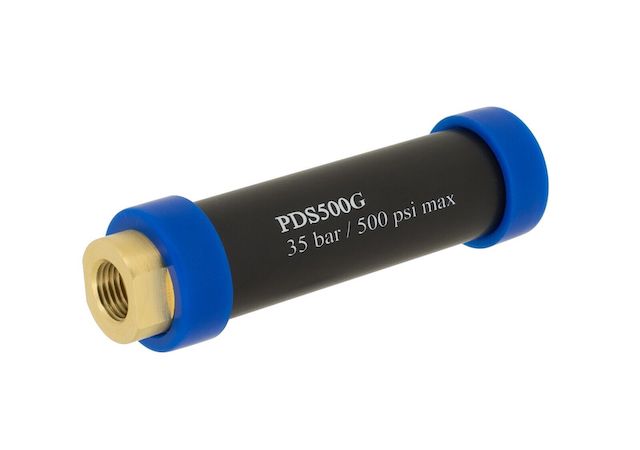

Pressure Diagnostic Sensor PDS500x
-
Dual function cable
-
Main compression adapter for PDS500x
-
Adaptor M10 x 1.0 short reach
-
Adaptor M14 x 1.25 short reach
-
Adaptor M14 x 1.25 deep reach
-
Spark plug grounding clip adaptor
-
(For spark plugs with M14x1.25 mm and M12x1.25 mm threads)
-
Thread adaptor G 1/4 male to 1/8-27 NPT female
-
Thread adaptor G 1/4 male to R 1/8 female
-
Thread adaptor G 1/4 male to G 1/8 female
-
Thread adaptor G 1/4 male to G 1/4 male
-
Thread adaptor G 1/4 male to 1/4"-18 NPT male
-
Mini industrial quick coupling adapter
-
G 1/8 BSP Female Mini Quick Coupling
-
7 mm Hose Barb Adapter for Quick Coupling
-
P8 mm Hose Barb Adapter for Quick Coupling
-
10 mm Hose Barb Adapter for Quick Coupling
-
Hose brass barb tee fitting 8mm x 8mm x 8mm
-
Plastic case with EVA foam
