ScanDoc Compact, Professional Vehicle Diagnostic System

£369.00
+
Brand
Quantex

ScanDoc Compact Professional Vehicle Diagnostic System.

  • **Availability: Ships in 3-5 working days**
  • Includes one brand of diagnostic software and OBDii module
  • Expandable, add further manufacturers coverage
  • WiFi connection
  • Multiple platforms supported, Windows, Mac, Android and iOS.
  • 18 month warranty
  • Full vehicle system coverage, easy to use interface

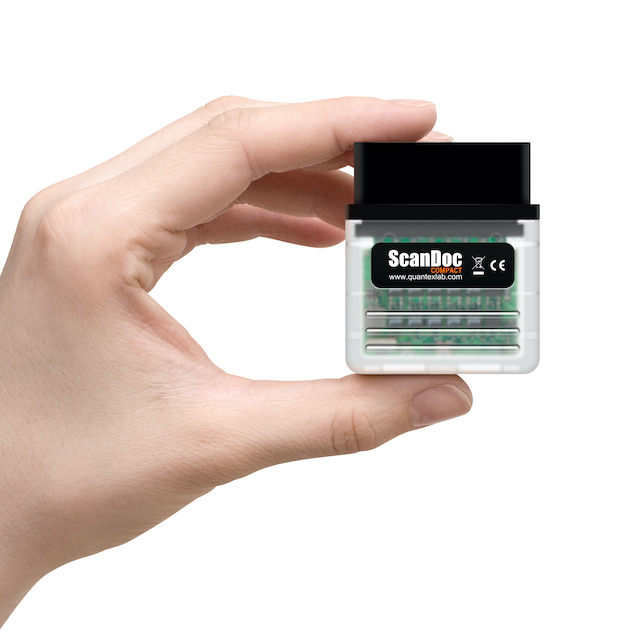

ScanDoc Compact.

The new professional multi-brand vehicle diagnostic system. And not only diagnosis, but also coding, programming, learning, setting and repairing. Wide brand coverage and deep system diagnostics. Simple wireless WLAN connection between PC and diagnostic device offers a lot of freedom in the workshop. The device is very compact and manual. Functionality is the same as with the "big" ScanDoc. The "Compact" device comes with software licenses for OBD-2 and a vehicle brand of your choice (please select above). Further vehicle brands can be ordered as required. Price per brand 50 GBP. This allows, the ScanDoc kit to be expanded to cover additional brands at any time and offers inexpensive professional diagnostics for  workshops, and also for private users.

ScanDoc compact professional vehicle diagnostic system

If you sell your vehicle and change the brand - you have to look around for a new diagnostic system - and here you only pay 50 GBP and get another vehicle brand unlocked. This saves costs and always works with the same and familiar software and hardware. The updates for the purchased vehicle brands are currently free of charge. Later, possibly Update costs for the new vehicles will be charged. The costs are estimated at approx. 20GBP/year per vehicle brand. Updates for the improvements to the purchased software and brands remain free of charge.

Any other vehicle brand or Group of brands (groups see below) costs 50 GBP.

ScanDoc Compact with all brands  available for £990 GBP. (Contact us to purchase this option)

To upgrade to the full version ScanDoc  - Upgrade to all brands costs 641 GBP regardless of the number of brands already purchased.

Currently supported vehicle brands (grouped by package)

  • Audi / Seat / Skoda / Volkswagen
  • Acura/Honda
  • BMW/Mini
  • Chery
  • Citroen/Peugeot
  • Daewoo / Chevrolet / Buick / Cadillac / GMC / Holden
  • FAW / FAW Truck / JAC / Haima / Zotye / Changan
  • Fiat / Lancia / Alfa Romeo
  • Ford/ Mazda/ Lincoln
  • Geely / Lifan / Brilliance / Wuling
  • GWM / Changhe / FDQC / Shuanghuan / Dongfeng
  • Hafei / Xinkai / ZX / BYD
  • Isuzu
  • Hyundai/KIA
  • Land Rover/ Jaguar
  • Mercedes/Smart
  • Mitsubishi
  • Nissan/Infiniti
  • Opel/Vauxhall
  • Renault/Dacia
  • Rewaco
  • Subaru
  • Suzuki
  • Tagaz
  • Toyota / Lexus / Scion / Daihatsu
  • Ssang-Yong
  • VAZ / GAZ / UAZ / MAZ / KAMAZ / ZAZ
  • OBD-II

Main functions of the ScanDoc ECU diagnostic system

  • Read error codes and display them in clear text
  • Delete error codes
  • View real-time data
  • to control actuators
  • Identification of the vehicle and control units
  • Immobilizer programming
  • Settings and programming various Parameters
  • Reset the service interval display
  • Encoding, learning, adapting
  • Show installation locations of the diagnostic socket
  • OBD-2/EOBD diagnostics

Language support

  • German
  • English
  • Greek
  • Russian

Hardware technical data

  • Hardware protocols: K- and L-Line, 2x CAN Bus, VPW, PWM, J1708
  • Software protocols: KW71, KW81, KW82, KW1281, DS2, ISO8, ISO14230, ISO9141, ISO15765, J1979, J1850, J1939
  • Multiplexer
  • Connection to PC: WLAN IEEE 802.11b 54MBit/sec
  • Operating voltage: 9 V - 30 V DC via diagnostic plug
  • Dimensions (LxWxH): 98X43X22 mm
  • Weight: 68 g
  • Color: black/transparent

Includes the following:

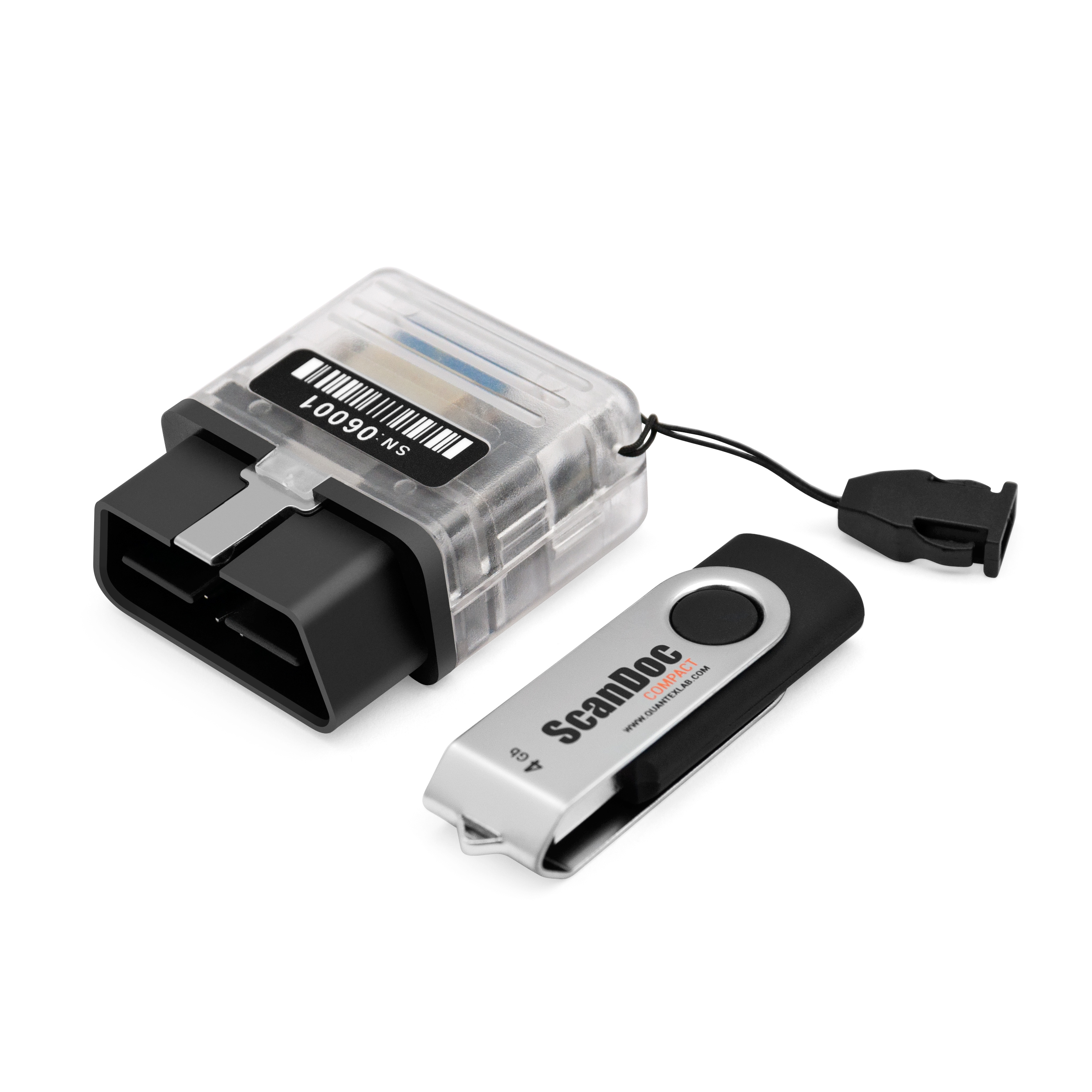

  • ScanDoc Compact with WLAN connection
  • USB stick with software
  • Software basic license for all OBD-2 vehicles
  • Software license for a vehicle brand of your choice.
  • Plastic storage box
  • Free support
  • 18 months manufacturer's warranty

More information and technical data can be found here.

As described above, the basic package includes the hardware and software licenses for OBD-2 and a vehicle brand of your choice. Please order further software licenses for manufacturer-specific vehicle diganosis separately as required. These can also be reordered later at any time.

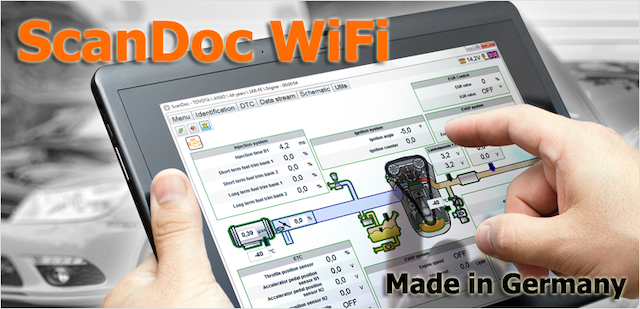

ScanDoc wifi vehicle diagnostic system
