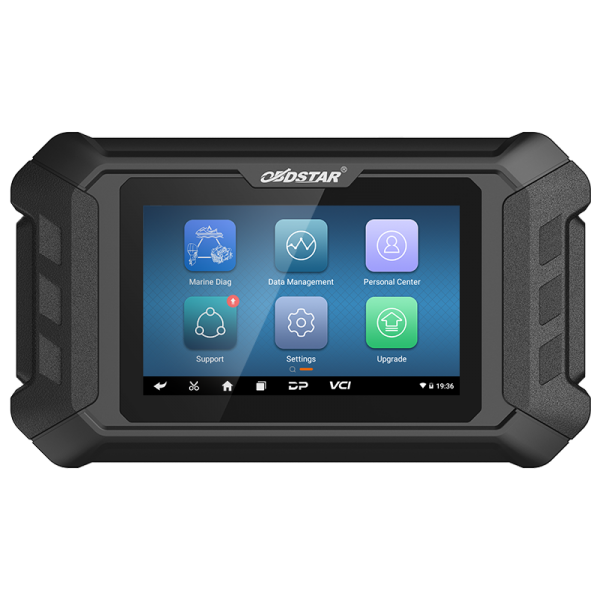

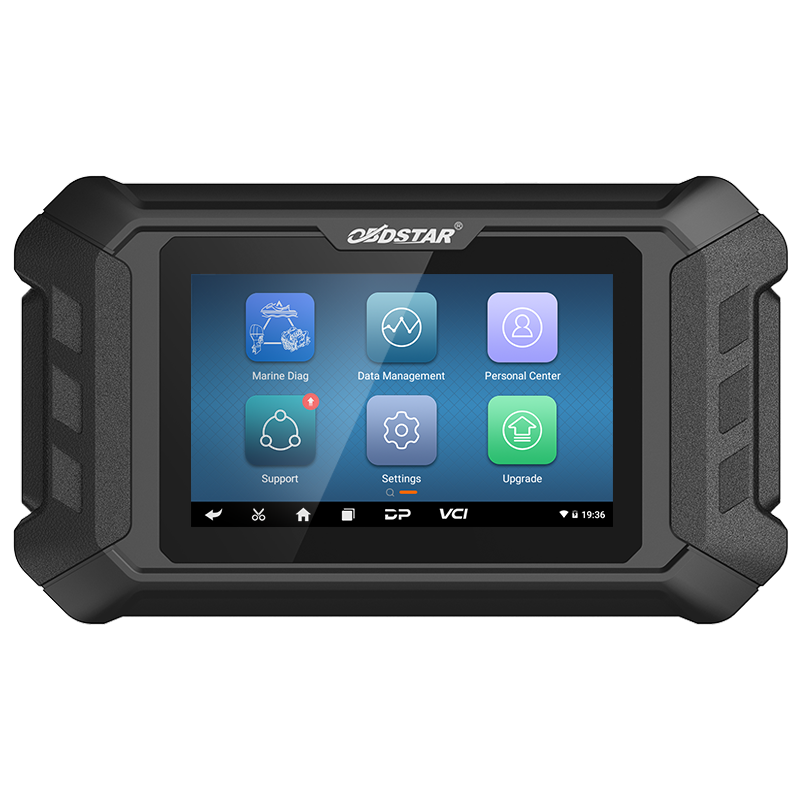

Outboard Jet-Ski Diagnostic Tool. OBDStar Iscan Marine Diagnostic System

The OBDStar Iscan Marine range of tablets are rugged portable tablets with excellent performance and industrial design, they are well suited to garage and harsh environments.

It is a new generation of intelligent marine diagnostic equipment tailored for both Professional and DIY customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.

Functions

1. New android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu arbitrary selection is more convenient and quick;

5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;

2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;

3. Support Device Configuration, Maintenance Notification Setting and other special functions

Function Display-(From OBDSTAR Mobile App)

1)     Main Page

2)     Diag Socket/Diag Connector Location

3)    Manual Service Function(Service Lamp Reset)

Function Display-(From ISCAN)

1)    Main Page/Brand Supported

2)    Menu Selection

3)    Data Flow Text/Waveform Diagram/Instrument Diagram

4)    Special Functions
