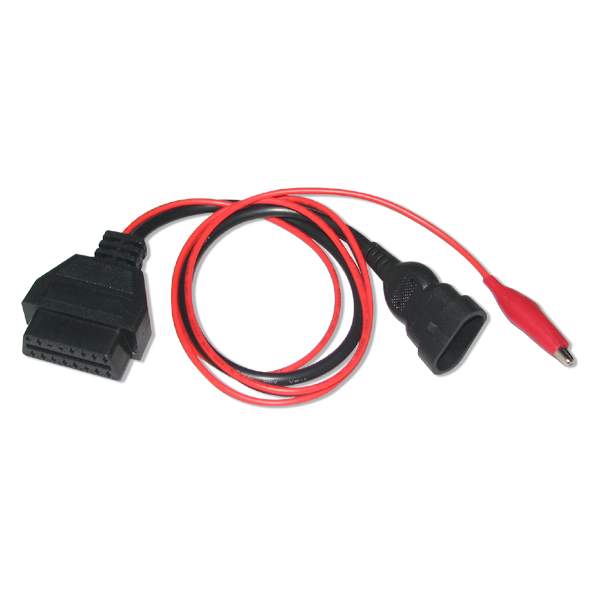

Ducati, Aprilia 3 pin to 16 Pin OBD2 Converter Cable

Zoom

Our Price:  £12.00 Notify me when this item is available Brand:  BMDiag Share Tweet DUCATI AND APRILIA 3 PIN MOTORCYCLE DIAGNOSTIC ADAPTER Use with a KKL interface or ELM USB or Bluetooth Includes Power and Ground cables (required to power the diagnostic tool) Diagnose Ducati and Aprilia with JPDiag, TuneECU, GuzziDiag software

DUCATI AND APRILIA 3 PIN MOTORCYCLE DIAGNOSTIC ADAPTER

• Supports DUCATI and APRILIA motorcycles that are fitted with the 3 pin diagnostic port.

Bikes that are fitted with Magneti AND Marelli ECU:

• MOST 2009 AND EARLIER MODELS INCLUDING: 916/998/748, 1098/848, 888, MONSTER 620/800,/1000DS, 900SS, 750SS, 800SS ST2, ST4S, S4R, STREET FIGHTER, MULTISTRADA AND MORE,

**Now supporting select Aprilia bikes using the 7SM ECU! Includes the RSV4, Atlantic, RS4 and Caponord.  Check the diagnostics port on your bike - this cable will work with those bikes that are fitted with the 3 pin diagnostics port.**

We offer this kit standard with the Ducati 3 pin interface complete with  Crocodile clips (these clips supply power to the interface as the diagnostics port does not supply power to the main cable) BlueTooth scan tool with TuneECU or other device.

 Most 08 and earlier Ducati will use the 3 pin port. Later bikes are fitted with the Siemens/Motorolla /Marelli CAN BUS ECUs and use a 4 pin diagnostics port.

Select Aprilia (RSV4 and similar) often use the 3 pin. If your Aprilia uses a 6 pin "rectangular" diagnostics port you will need the Aprilia specific adapter

NEW - SUPPORT FOR APRILIA RSV4 AND OTHER MODELS USING THE MAGNETI AND MARELLI 7SM ECU! (NOT CAN BUS) (ONLY VIA GUZZIDIAG SOFTWARE - INCLUDES DIAGNOSTICS AND READ/WRITE SOFTWARE FOR 7SM ECU)
