Ducati and Aprilia 3 Pin Diagnostic Tool for JPDiag - Guzzidag - TuneECU Diagnostic Software

Ducati and Aprilia 3 Pin Diagnostic Tool for JPDiag - Guzzidag - TuneECU Diagnostic Software
  Zoom
Our Price:  £29.00
+

Brand:  BMDiag

Aprilia, Ducati, Moto Guzzi compatible KKL Interface with 3 pin Fiat Style Adapter Motorcycle Diagnostic Hardware Kit

** IN STOCK**

  • FTDI based interface for Ducati, Aprilia, etc
  • Includes the Fiat Style 3 pin adapter as recommended by JPDiag
  • Use with JPDiag GuzziDiag or TuneECU diagnostic software
  • Diagnose Ducati and Aprilia bikes fitted with Magneti Marelli ECU such as IAW5AM, IAW5SM,IAW7SM K line version , MIU, etc.

Ducati and Aprilia 3 Pin Tool for JPDiag - Guzzidag - TuneECU Diagnostic Software

  • Supports DUCATI and APRILIA Moto Guzzi motorcycles that are fitted with the 3 pin diagnostic port.
  • Includes Fiat style 3 pin adapter as recommended by JPDiag website

Bikes that are fitted with Magneti / Marelli ECU:

  • MOST 2009 AND EARLIER MODELS INCLUDING: 916/998/748, 1098/848, 888, MONSTER 620/800,/1000DS, 900SS, 750SS, 800SS ST2, ST4S, S4R, STREET FIGHTER, MULTISTRADA AND MORE,


**Now supporting select Aprilia bikes using the 7SM ECU! Includes the RSV4, Atlantic, RS4 and Caponord.  Check the diagnostics port on your bike - this cable will work with those bikes that are fitted with the 3 pin diagnostics port.**

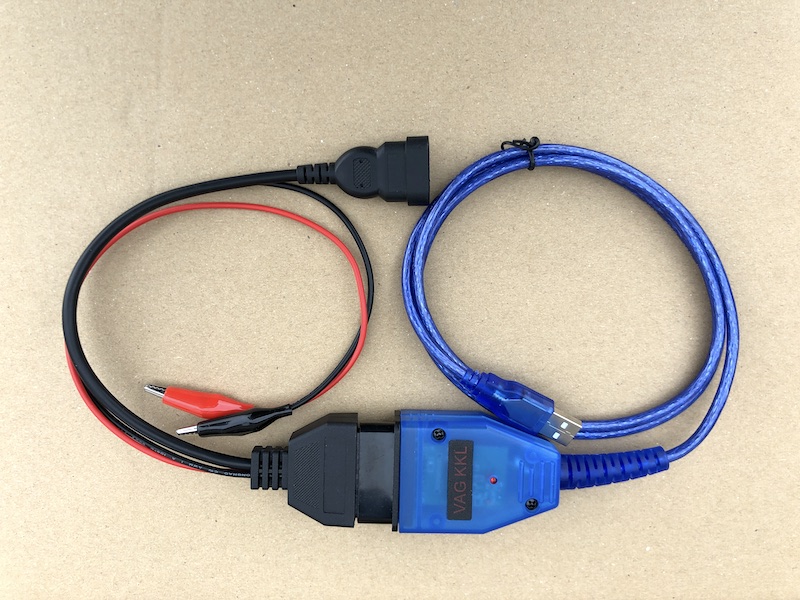

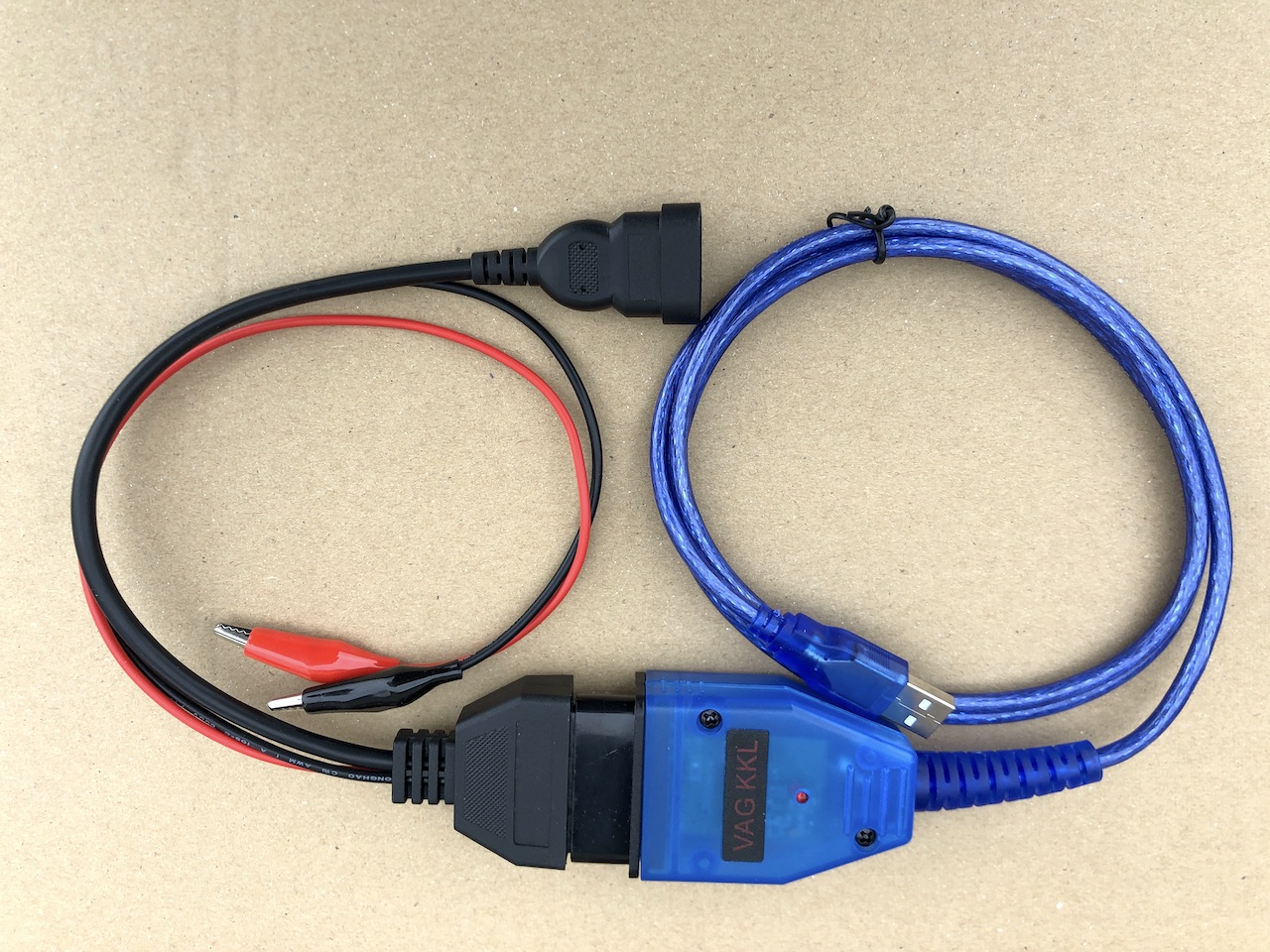

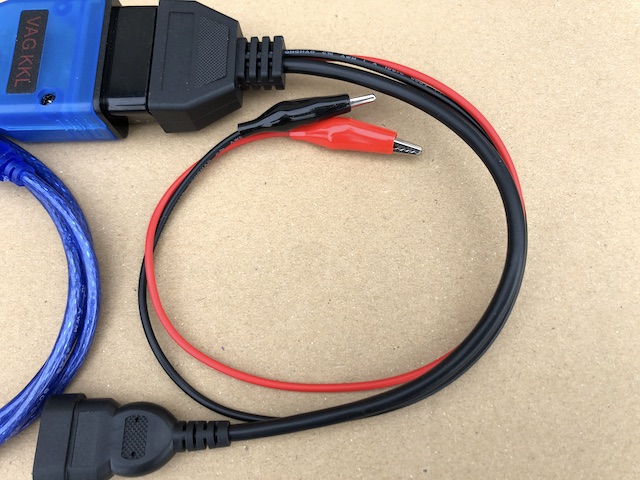

This kit includes the Ducati 3 pin interface complete with Crocodile clips (these clips supply power and ground to the interface as the diagnostics port does not supply power to the main cable)

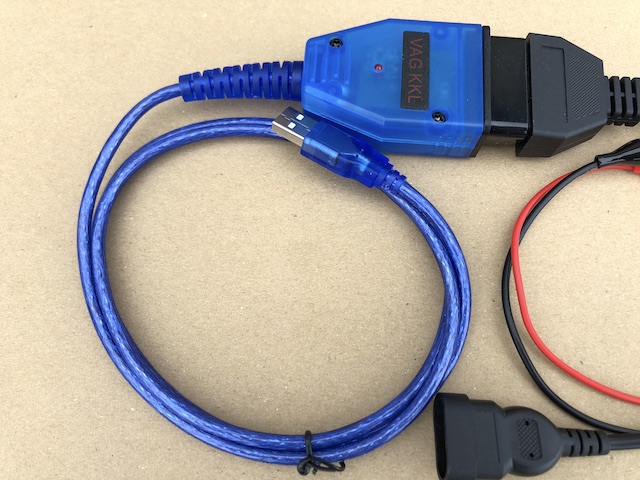

  • FTDI Chip based USB interface and 3 pin Adapter cable compatible with TuneECU, GuzziDiag and JPDiag software
  • Compatible with the majority of Ducati, Aprilia, Moto Guzzi, and other bikes fitted with the 3 pin diagnostic socket



ducati, aprilia, KTM KKL 3 pin diagnostic kit

**SUPPORTS APRILIA RSV4 AND OTHER MODELS USING THE MAGNETI AND MARELLI 7SM ECU! (NOT CAN BUS) (ONLY VIA GUZZIDIAG SOFTWARE - INCLUDES DIAGNOSTICS AND READ/WRITE SOFTWARE FOR 7SM ECU)**

Features

  • Genuine FTDI Chip based top quality interface
  • 3 pin adapter cable included (wiring tested and guaranteed compatible with the Motorcycle ECU)
  • Includes both power and ground cables required to power the interface
  • Compatible with GuzziDiag,  JPDiag Ducati software and TuneECU software and App
  • Free setup and installation support included

Compatible software can be found at these websites:

  • www.tuneecu.net
  • https://jpdiag.akress.com

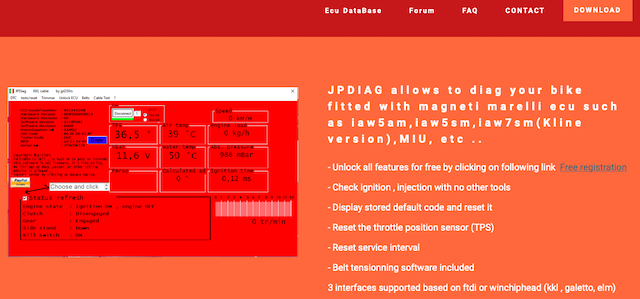

Ducati diagnostic software JPDiag

KKL Vag com interface for Ducati aprilia ktm diagnostic softwareDucati, aprilia, ktm, 3 pin diagnostic adapter cable

  • One year warranty
  • Free installation support
